Product Cataloge

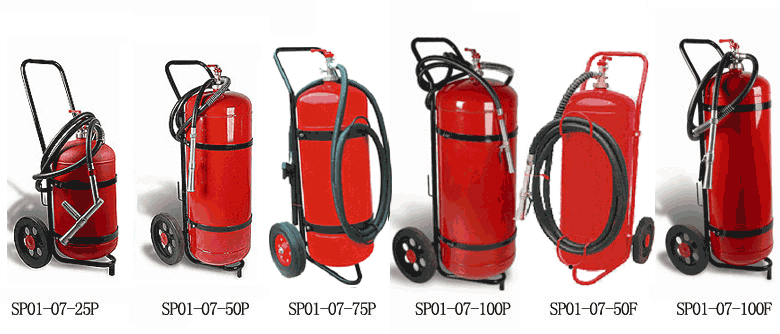

Trolley extinguisher

Model No.  SP01-07-25P SP01-07-50P SP01-07-75P SP01-07-100P SP01-07-50F SP01-07-100F
Type 25kg 50kg 75kg 100kg 50L 100L
Out Diameter (mm) 256 305 355 406 305 406
Height(mm) 595 930 950 1050 930 1050
Volume (L) 31 59.5 88 121 59 121
Min.Thickness(mm) 2.5 2.5 2.8 2.8 2.5 2.8
Working Pressure (Bar)  14 14 14 14 14 14
Test Pressure(Bar) 30 30 30 30 30 30
Operating temp. -30℃;to+60℃ -30℃to+60℃ -30℃to+60℃ -30℃to+60℃ +5℃to+60℃ +5℃to+60℃
Fire rating 55A ⅠB C 55A ⅡB C 55A ⅡB C 57A ⅢB C 55A ⅡB  55A ⅡB
Extinguisher weight (kg) 37.5 77 105 145 105 145
