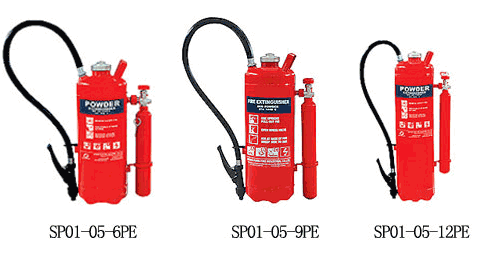

Cartridge Extinguisher
Model No.  SP01-05-6PE SP01-05-9PE SP01-05-12PE
Type 6kg 9kg 12kg
Out Diameter (mm) 160 183 190
Height(mm) 434 496 605
Volume (L) 7.6 11.2 13.6
CO2 Cartridge (g) 250 300 350
Min.Thickness(mm) 1.24 1.3 1.3
Cylinder Material ST12/DC01 ST12/DC01 ST12/DC01
Discharge Time (S) ＞39 ＞45 ＞56
Working Pressure (Bar)  12 12 12
Test Pressure(Bar) 30 30 30
Operating temp.  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃
Fire rating
(40%ABC / 3%AFFF)		 27A/183B/C 34A/233B/C 43A/234B/C
Extinguisher weight (kg) 11.80  16.00  21.00
