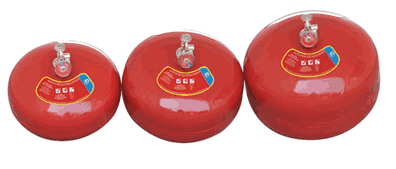

Hanging Automatic Extinguisher
Model No.  SP01-06-6 SP01-06-9 SP01-06-12
Type 6kg 9kg 12kg
Out Diameter (mm) 270 300 350
Height(mm) 190 230 220
Volume (L) 7.6 11.2 14
Discharge Time (S) ＞11 ＞14 ＞20
Protection area(m) R≥0.94 R≥1.08 R≥1.18
Working Pressure (Bar)  12 12 12
Test Pressure(Bar) 25 25 25
Starting Temperature 68℃ 68℃ 68℃
Operating temp.  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃
Fire rating 21A/144B/C 27A/183B/C 34A/233B/C
Extinguisher weight (kg) 10 14.8 17
