Product Cataloge

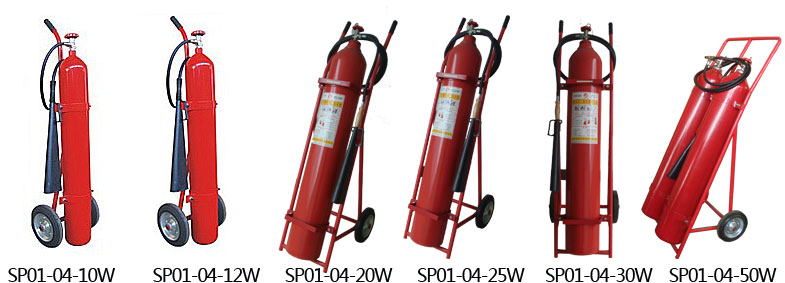

CO2 Extinguisher 3









Model No.  SP01-04-10W SP01-04-12W SP01-04-20W SP01-04-25W SP01-04-30W SP01-04-50W
Type 10kg 12kg 20kg 25kg 30kg 50Kg (twins)
Out Diameter (mm) 152 152 219 219 232 219
Height(mm) 1040 1240 1160 1360 1400 1360
Volume (L) 15+1.5 18+1.8 33.4+1.67 41.7+2.09 50+2.05 83.4+4.17
Min.Thickness(mm) 5.2 5.2 5.7 5.7 5.7 5.7
Material CK45 CK45 37Mn 37Mn 37Mn 37Mn
Working Pressure (Bar)  150 150 150 150 150 150
Test Pressure(Bar) 250 250 225 225 225 225
Operating temp.  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃  -30℃ to +60℃
Fire rating 183B 183B 233B 233B 233B 233B
Extinguisher weight (kg) 37.5 45 77 89 105 172
